In the industrial field, motors are important driving forces for a variety of equipment. Spindle motors, servo motors and linear motors are a few common types of motors, each with their own characteristics and scope of application.

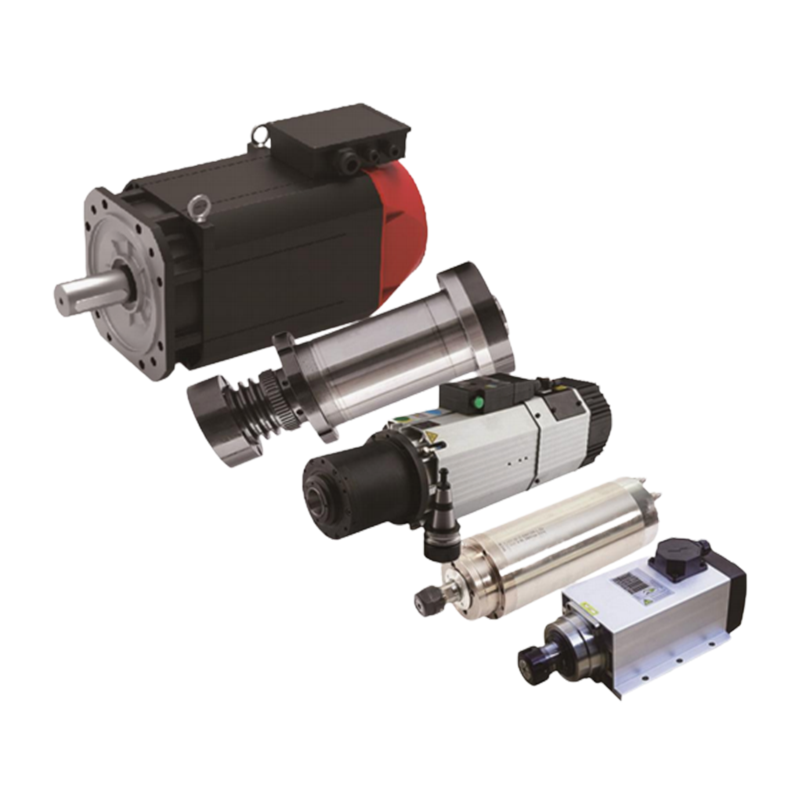

Spindle motors and servo motors are both common types of motors in the field of industrial control, but they are significantly different in terms of design principles and usage scenarios.
Spindle motor is a high speed, high torque linear drive motor, commonly used in machine tools, mixers and other transmission devices. The main features of spindle motors are stable rotational speed, fast response and high precision, which can meet the requirements of high speed, high precision and high efficiency.

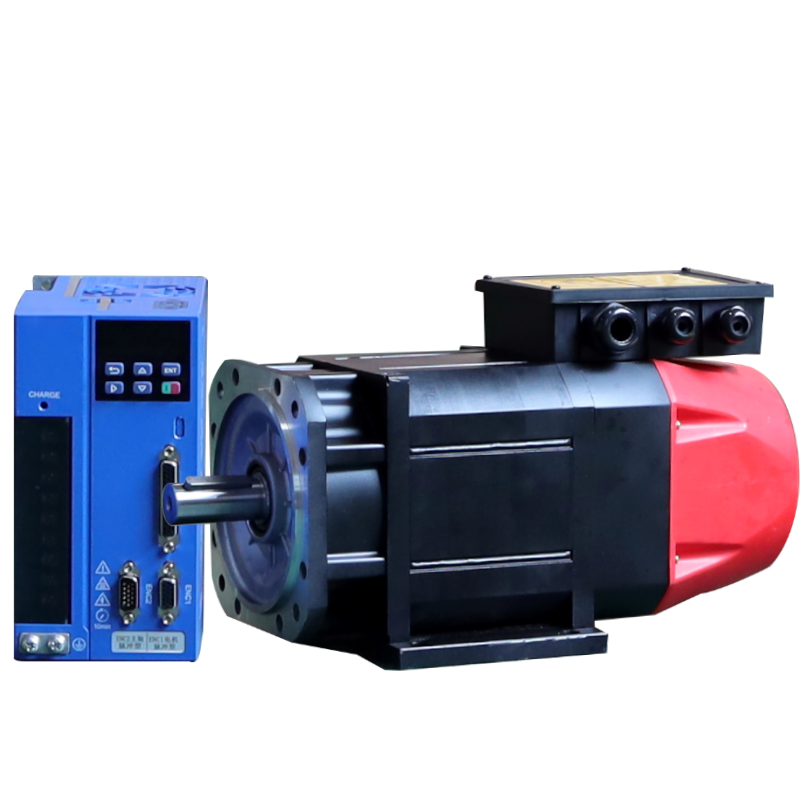

Servo motor, on the other hand, is a kind of motor with position, speed and torque as the control target, which is commonly used in automation control, industrial robots, printing equipment and other fields. The main characteristics of servo motors are high precision, fast response, high control accuracy, and can realize precise dynamic control.
Spindle motors and servo motors play different roles in CNC machine tools, which leads to differences in their design and operation. The main task of the spindle motor is to drive the spindle of the machine tool and provide the main cutting force for the machine. Therefore, the main output indicator of a spindle motor is the power (kW) to meet the machining needs of the machine. Such motors usually need to have a large output power, as well as a wide speed range to adapt to different machining materials and process requirements.
In contrast, servo motors in CNC machine tools are mainly responsible for driving the machine's table or tool magazine and other moving parts to achieve precise displacement control. The output index of servo motors is mainly torque (Nm), which is because servo motors need to rotate to drive other parts to work, and torque is the key index to measure this driving ability. Servo motors usually use a closed-loop control system, which is able to continuously adjust the output according to the feedback signals in order to realize precise position and speed control.
As the spindle motor and servo motor features and advantages are different, so their application scenarios in industrial control are also different.
Spindle motors are commonly used in machine tools, presses, mixers and grinders, and are suitable for transmission devices that require high speed, high precision and high efficiency. Spindle motors are usually controlled by fixed-frequency or variable-frequency control, and the output torque of the drive system is controlled by controlling the speed of the motor.

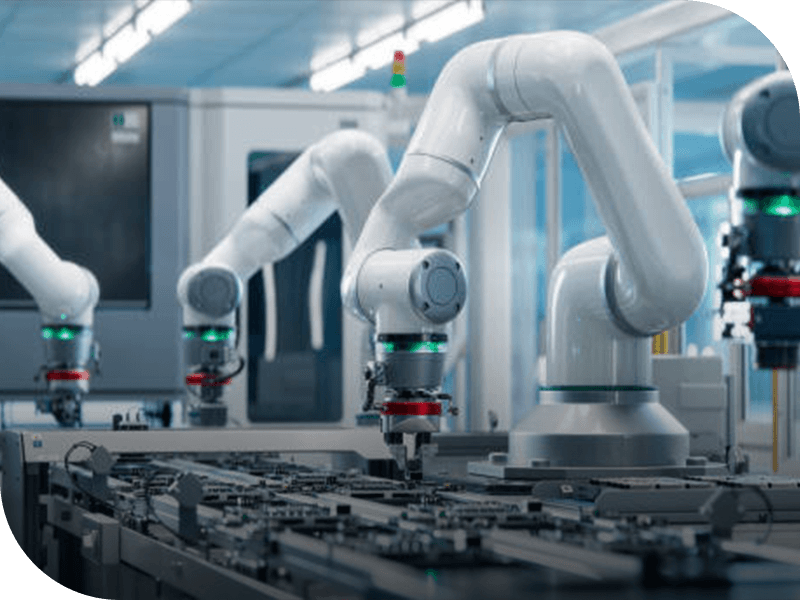

Servo motors, on the other hand, are commonly used in automation control, industrial robots, printing equipment, packaging equipment and other fields to achieve high-precision position and speed control. Servo motors usually use servo controllers to control the position and speed of the motor, real-time feedback between the actual position and the target position deviation, and through the PID algorithm for dynamic adjustment.
In industrial control, the spindle motor and servo motor can be used in combination according to specific needs. For example, in CNC machine tools, spindle motors are usually used to drive the spindle, while the servo motor is used to drive the feed axis.
It should be noted that the control of spindle motors and servo motors requires precise synchronization control to ensure the stability and accuracy of the whole system. In addition, when configuring the spindle motor and servo motor, it is necessary to select and match them according to the actual demand and machine parameters to obtain the best control effect.
Spindle motors and servo motors are common types of motors in industrial control, and they have obvious differences in design principles and application scenarios. In practical applications, they can be used in combination according to demand, but precise synchronization control is required to ensure the stability and accuracy of the whole system.
The main differences between spindle motors and servo motors are reflected in application scenarios, performance requirements and output characteristics. Spindle motors are designed for high speed and constant power output, and are mainly used to drive machine tool spindles; servo motors emphasize precise position, speed and torque control, and are suitable for machine tool feeding systems and automation equipment.
Design objectives and application scenarios.
Optimized for high rotational speeds (typically in excess of 10,000 rpm) and constant power output to ensure adequate cutting forces are maintained at different speeds.
Mainly used in machine tool spindle drive, driving the workpiece or tool rotation for cutting processing, need to adapt to wood, metal, glass and other materials.
With the core objective of realizing fast response and high precision control, it has millisecond-level dynamic adjustment capability and can precisely control position, speed and torque.
Mostly used in machine tool feeding system (control table or tool movement) and automation equipment (such as robots, CNC equipment), the movement trajectory precision requirements are extremely high.
Spindle motors use power (kW) as the output indicator, emphasizing constant power characteristics over a wide speed range (the higher the speed, the lower the output torque).
The servo motor takes torque (N-m) as its output index, emphasizing constant torque output and short-time overload capability (up to 3 times rated torque).
The structure of spindle motor pays more attention to heat dissipation and stability, often equipped with liquid cooling system and strengthened bearing design, adopting speed closed-loop control, optimizing constant power output.
Servo motors usually contain high-resolution encoders (such as 23-bit) and precision gearboxes, adopt closed-loop position control, and support a variety of communication protocols to achieve microsecond synchronization.
Technical parameters: rated power, maximum speed, insulation class, etc., with shorter maintenance intervals (e.g., grease replenishment every 500 hours).
Technical parameters: rated torque, speed range, overload capacity, etc., with longer maintenance intervals (e.g., checking bearings every 20,000 hours).
