Product Description

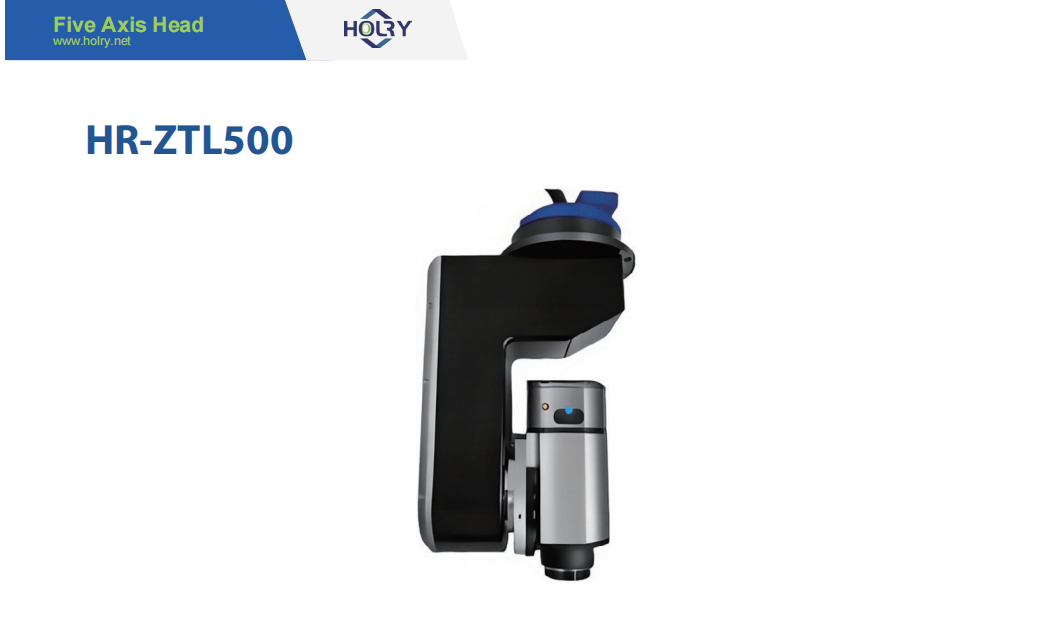

The HOLRY HR-ZTL500 is a heavy-duty, high-precision 5-axis milling head engineered for complex simultaneous machining. Designed for integration into large-scale CNC gantry machines and bridge-type machining centers, the HR-ZTL500 excels in high-torque operations where geometric accuracy and surface finish are critical. Featuring a robust A/C Dual-Axis (Double Swing) structure, it provides the versatility needed for intricate 3D contouring and deep-cavity milling.
Superior Rigidity for Heavy-Duty Cutting: Built with high-strength alloys and optimized damping, the ZTL500 minimizes vibration even during aggressive material removal in hardened steel or titanium.
Sub-Micron Precision: Equipped with high-resolution encoders and precision reducers, achieving exceptional repeatability and positioning accuracy for aerospace-grade tolerances.
High Load Capacity: Compared to the ZLL series, the HR-ZTL500 is specifically designed to handle larger tool diameters (HSK-A100 / BT50 compatible) and higher cutting forces.
Advanced Thermal Management: Integrated liquid cooling cycles maintain constant spindle temperatures, preventing thermal expansion and ensuring long-term stability during 24/7 production cycles.
Seamless CNC Integration: Fully compatible with industry-leading controllers including Siemens 840D, Fanuc 31i, and Heidenhain TNC 640.
| Part No. | HR-ZTL500 | |
| Material | Cast Iron | |
| Unit | A-axis | C-axis |
| Servo Motor | 80SE100-57530 | 80SE100-57530 |
| Gearbox | Harmonic | RV |
| Ratio | 1:181 | 1:104.43 |
| Rated Torque ( N.m ) | 167 | 215 |
| Max. Instantaneous Torque ( N.m ) | 568 | 680 |
| Axis Maximum rotation angle | ±110 | ±360 |
| Axis Positioning Accuracy | 1Arcmin | 1Arcmin |
| Weight(KG) | 85 | |
| Main shaft pendulum length | ≤228MM | |
| Spindle power range | 1.2-15KW | |
Aerospace: Production of complex structural components, engine housings, and wing spars.
Die & Mold: High-efficiency milling of large automotive injection molds and stamping dies.
Energy Sector: Precision machining of wind turbine components and heavy industrial gearboxes.
Marine & Defense: Large-scale propeller blades and specialized maritime hardware.
Choosing the HR-ZTL500 means investing in a solution that bridges the gap between high-speed precision and industrial durability. HOLRY’s commitment to modular design allows for customized spindle configurations to meet your specific torque and RPM requirements, ensuring a perfect fit for your existing CNC infrastructure.
