Product Description

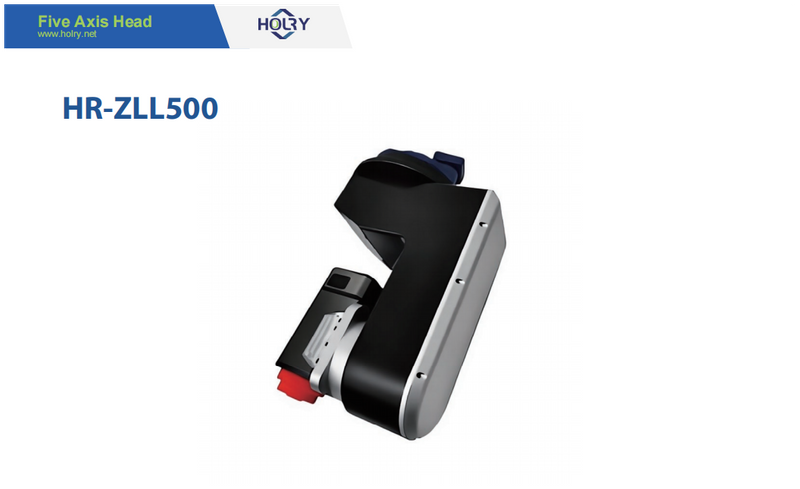

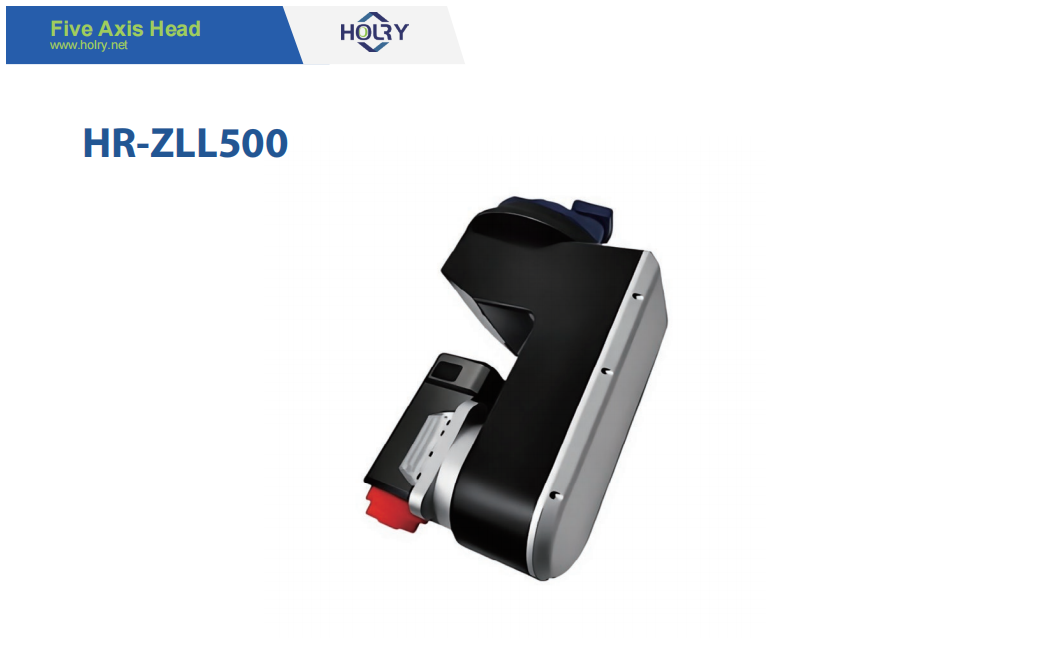

The HOLRY HR-ZLL500 is a flagship-grade, industrial-scale CNC 5-axis milling head engineered for heavy-duty, high-precision simultaneous machining. Specifically developed for large-scale gantry machining centers and bridge-type machines, the HR-ZLL500 represents the pinnacle of HOLRY’s "Double Swing" (A/C axis) technology. It is the premier choice for manufacturers handling massive, complex workpieces in the aerospace, energy, and heavy-duty mold industries where extreme torque and sub-micron stability are non-negotiable.
Exceptional Heavy-Duty Performance: Built with reinforced structural casting, the ZLL500 is designed to handle maximum cutting forces, making it ideal for tough materials like titanium, Inconel, and hardened steel alloys.
Maximum Tooling Versatility: Optimized for HSK-A100 and BT50 interfaces, allowing for larger tool diameters and deeper material removal rates compared to smaller models.
Superior Positioning Accuracy: Featuring high-resolution absolute encoders and high-torque precision reducers, the HR-ZLL500 ensures precise A/C axis synchronization for flawless 3D surface finishing.
Integrated Liquid Cooling System: A high-efficiency thermal management circuit runs through the spindle and axis motors, ensuring consistent accuracy and preventing thermal expansion during 24/7 continuous operation.
Universal CNC Synchronization: Engineered for seamless integration with high-end controllers including Siemens 840D, Fanuc 31i, and Heidenhain TNC 640.
| Part No. | HR-ZLL500 | |
| Material | Cast Aluminum | |
| Unit | A-axis | C-axis |
| Servo Motor | 80SE100-57530 | 80SE100-57530 |
| Gearbox | Harmonic | RV |
| Ratio | 1:181 | 1:104.43 |
| Rated Torque ( N.m ) | 167 | 215 |
| Max. Instantaneous Torque ( N.m ) | 568 | 680 |
| Axis Maximum rotation angle | ±110 | ±360 |
| Axis Positioning Accuracy | 1Arcmin | 1Arcmin |
| Weight(KG) | 42 | |
| Main shaft pendulum length | ≤248MM | |
| Spindle power range | 1.2-15KW | |
Aerospace & Defense: Massive structural components, turbine housings, and large wing spars.
Energy Sector: Wind turbine blade hubs, nuclear reactor components, and large-scale gas turbine parts.
Heavy-Duty Die & Mold: XXL injection molds for automotive bumpers and large stamping dies.
Marine Engineering: High-precision machining of large propeller blades and ship engine components.
The HR-ZLL500 is the ultimate upgrade for manufacturers scaling up their production capabilities. While the HR-ZLL300 and ZTL420 focus on agility and medium-range work, the ZLL500 is built for pure power and uncompromising rigidity. It transforms your existing large-scale machine frame into a multi-axis powerhouse capable of finishing complex geometries in a single setup, drastically reducing lead times and labor costs.
