In today’s advanced manufacturing landscape, CNC (Computer Numerical Control) machining plays a vital role in producing high-precision components across industries such as aerospace, automotive, electronics, and medical devices.Understanding the types of CNC machining tools is essential for engineers, operators, and manufacturers who want to optimize efficiency, improve surface quality, and reduce production costs. Additionally, the performance of these tools is closely tied to the machine’s core components—especially the spindle system. High-performance solutions like the Holry Spindle Motor ensure that cutting tools operate at optimal speed, stability, and precision.
CNC machining tools are precision instruments used to remove material from a workpiece to achieve the desired shape, size, and finish. These tools are controlled by computer-generated instructions, allowing for highly accurate and repeatable operations.
The role of CNC tools goes beyond simple cutting. They determine:
1.Dimensional accuracy
2.Surface finish quality
3.Production speed
4.Tool wear and maintenance frequency
CNC machining tools can be divided into two main categories:
Cutting Tools
These are responsible for material removal, such as:
1.End mills
2.Drill bits
3.Turning tools
Auxiliary Tools
These support machining operations, including:
1.Tool holders
2.Collets
3.Probes
1.Single-point tools: Typically used in turning operations (e.g., lathe tools)
2.Multi-point tools: Used in milling and drilling, offering higher efficiency and smoother cutting
End mills are one of the most widely used CNC tools due to their versatility. They are capable of performing a variety of operations, including:
1.Slotting
2.Profiling
3.Contouring
4.Plunging
Types of end mills include:
1.Flat end mills
2.Ball nose end mills
3.Corner radius end mills

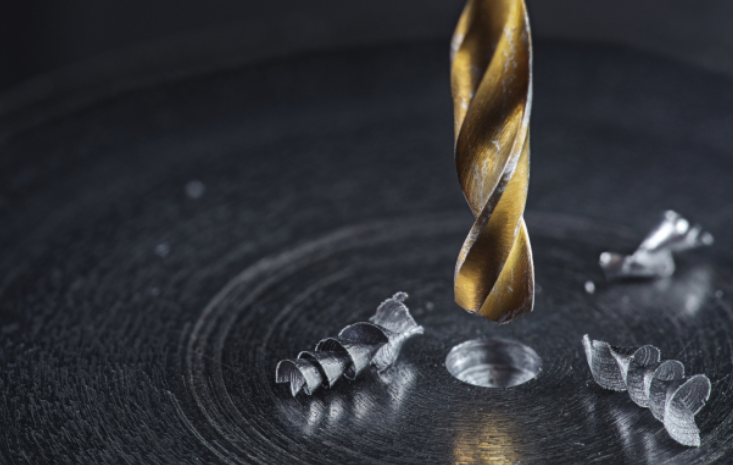

Drill bits are used to create holes with high accuracy. CNC drilling operations can produce consistent hole diameters and depths across multiple parts.
Common drill types include:
1.Twist drills
2.Center drills
3.Step drills

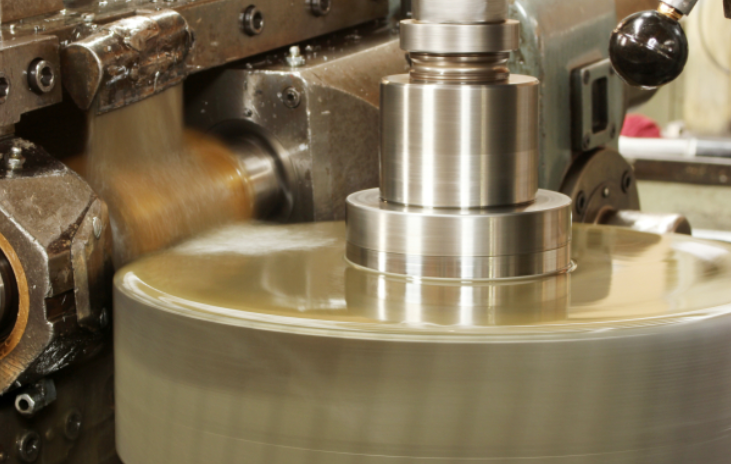

Face mills are designed for machining flat surfaces. They use multiple cutting inserts, allowing for efficient material removal over large areas.
Advantages include:
1.High productivity
2.Smooth surface finish
3.Reduced machining time

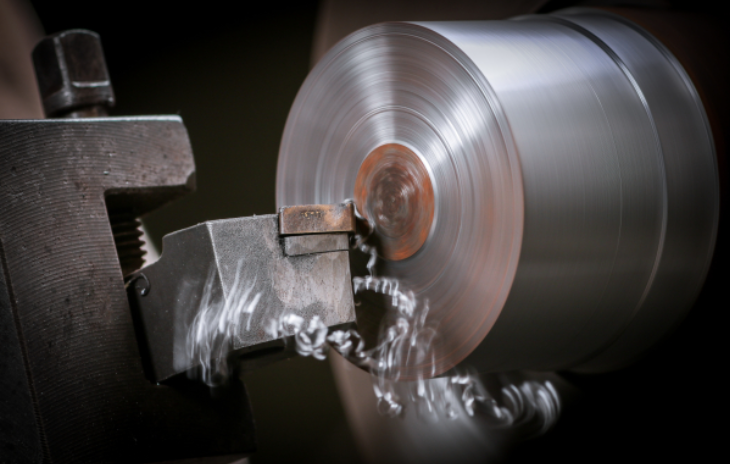

Turning tools are used in CNC lathes to shape cylindrical components. These tools typically have a single cutting edge and are used for:
1.Facing
2.Grooving
3.Threading
Reamers are used for finishing holes to achieve tight tolerances and smooth surfaces. They are often used after drilling operations.
These tools are used to create internal or external threads. Accurate threading requires precise synchronization between tool movement and spindle rotation.
End Mills
Drill Bits
Face Mills
Turning Tools
Reamers
Taps and Threading Tools
The material of a CNC tool significantly affects its performance and durability. Common materials include:
1.High-Speed Steel (HSS)
2.Carbide
3.Ceramic
4.Diamond
Coatings enhance tool performance by reducing friction and increasing heat resistance. Common coatings include:
1.Titanium Nitride (TiN)
2.Titanium Aluminum Nitride (TiAlN)
3.Diamond-like coatings
The spindle is the heart of a CNC machine. It holds and rotates the cutting tool at high speeds. The performance of the spindle directly impacts:
1.Cutting precision
2.Surface finish
3.Tool lifespan

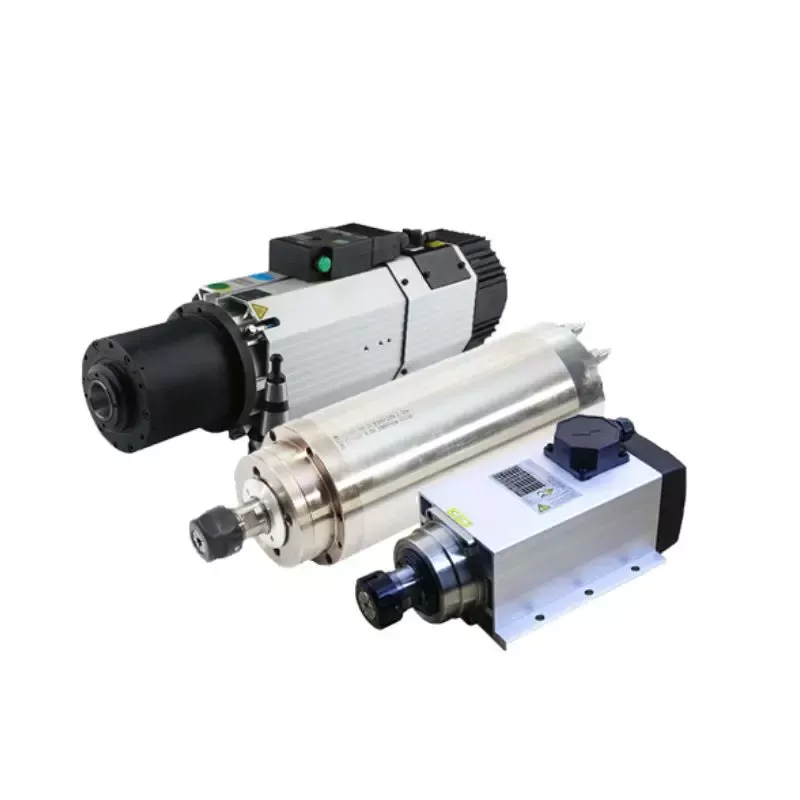

A high-performance spindle solution like the Holry Spindle Motor ensures:
1.Stable high-speed rotation
2.Low vibration and noise
3.High torque output
4.Long service life
Different materials require different tools:
1.Aluminum: Requires sharp tools and high speeds
2.Steel: Needs durable tools with heat resistance
3.Plastics: Requires tools that prevent melting
Tool selection depends on the machining process:
1.Milling → End mills
2.Drilling → Drill bits
3.Turning → Lathe tools
High-precision applications require:
1.High-quality tools
2.Stable spindle systems
3.Advanced control systems
Proper cutting parameters ensure efficient machining and reduce tool wear.
The shape and angle of a tool affect cutting efficiency and surface finish.
Vibration and instability can lead to poor results. A reliable spindle system, such as the Holry Spindle Motor, minimizes these issues.
Tools should be inspected regularly for wear and damage.
Storing tools correctly prevents damage and extends their lifespan.
Investing in high-quality tools and spindle systems ensures long-term reliability and performance.
Integration with sensors and IoT enables real-time monitoring and predictive maintenance.
New materials and coatings are improving tool durability and performance.
With advancements in spindle technology, including solutions like the Holry Spindle Motor, high-speed machining is becoming more efficient and accessible.
Understanding the different types of CNC machining tools is essential for achieving high-quality results in modern manufacturing. From end mills to threading tools, each plays a unique role in shaping materials with precision.
Equally important is the performance of the spindle system. A reliable and efficient solution like the Holry Spindle Motor ensures that all tools operate at their full potential, delivering superior accuracy, efficiency, and durability.
By combining the right tools with advanced spindle technology, manufacturers can unlock new levels of productivity and precision, staying competitive in an increasingly demanding industry.
