In the world of CNC machining, the spindle motor is the heart of your machine. For serious woodworkers, sign makers, furniture manufacturers, and metal fabricators, a 9.0KW air-cooled spindle offers an excellent balance of power, reliability, and ease of maintenance. Unlike water-cooled models that require pumps, radiators, and constant monitoring, air-cooled spindles deliver robust performance with simpler setup.
This comprehensive guide reviews a typical 9.0KW air-cooled spindle motor (commonly found on platforms like Peaco Support, Alibaba, and CNC specialist suppliers) and provides a detailed, step-by-step wiring guide. Whether you're upgrading from a 2.2KW or 5.5KW spindle or building a new machine, this article covers everything you need.

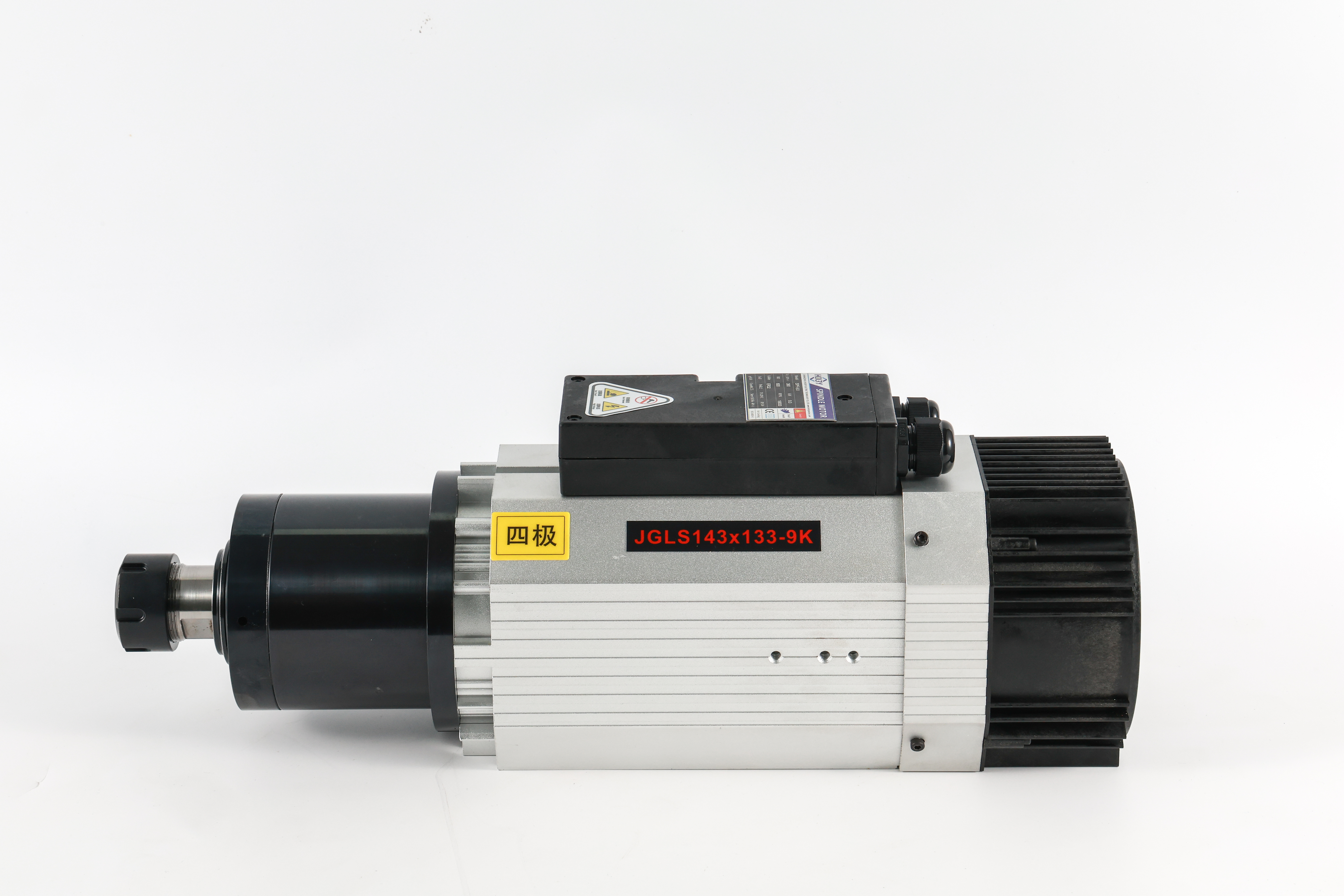

A 9.0KW air-cooled spindle is a high-power electrospindle designed for continuous heavy-duty CNC routing, milling, and engraving. It uses an integrated fan system to dissipate heat instead of relying on liquid coolant.
Power Output: 9.0 kW (continuous) / up to 9.5-10 kW peak
Voltage: 380V 3-phase (some support 220V with configuration)
Max Speed: 18,000 RPM (common) or up to 24,000 RPM in lighter duty
Torque: Approximately 4.78 Nm or higher
Collet: ER32 (standard) or ER40 for larger tools
Cooling: Advanced air cooling with high-volume fan
Bearings: High-precision ceramic or steel angular contact bearings
Tool Change: Manual or automatic tool changer (ATC) versions available
Weight: 25-35 kg depending on nose length and configuration
No Water System Required — Eliminates pumps, hoses, leaks, and winter freezing issues.
Lower Maintenance — Mainly involves keeping the air intake clean and checking bearings periodically.
Faster Setup — Ideal for mobile or workshop machines where water cooling is impractical.
High Power for Heavy Cuts — Excellent for deep passes in hardwoods, composites, aluminum, and plastics.
Quiet Operation — Modern fans run relatively quietly compared to older models.
Cost-Effective Long Term — Fewer components mean lower failure points.
Noise — The cooling fan adds noticeable noise at high RPM.
Heat Management — In very hot workshops or extended 100% duty cycles, cooling efficiency can drop compared to well-designed water systems.
Dust Sensitivity — The fan pulls in shop dust, requiring regular filter or intake cleaning.
Weight — Heavier than smaller spindles, demanding a rigid machine frame.
Users and manufacturers report that a well-built 9KW air-cooled spindle handles aggressive cutting parameters reliably. In hardwood (oak, maple), it supports deep passes at 12,000-16,000 RPM with feed rates of 8-15 meters per minute depending on tool diameter and material.
Strong low-end torque for large diameter bits.
Consistent speed under load when paired with a quality VFD.
Reliable for 8-10 hour production shifts with proper cooling airflow.
Some lower-cost units have louder fans or shorter bearing life if not properly balanced.
Vibration can appear if the spindle is not mounted perfectly square or if tools are unbalanced.

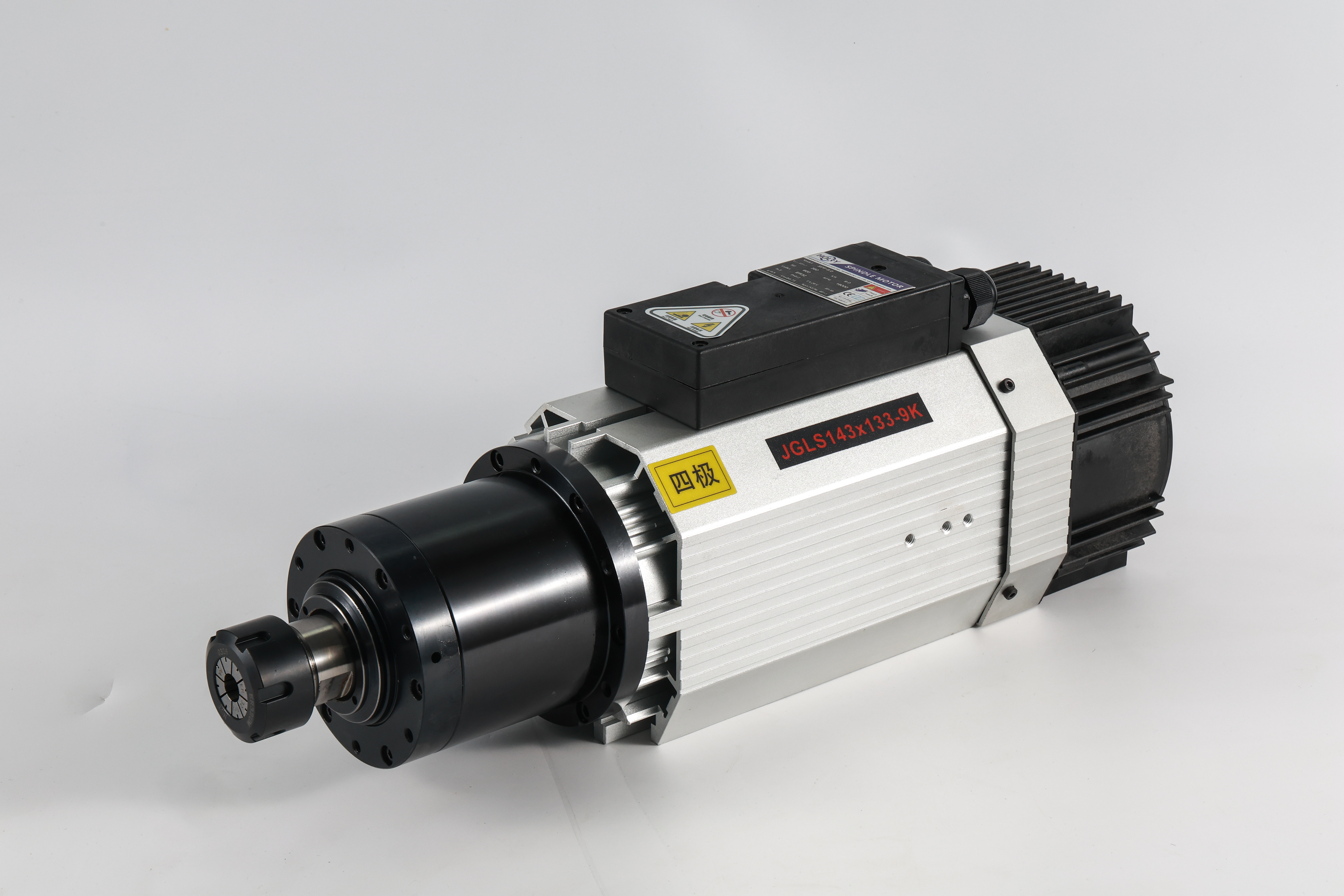

A typical 9KW air-cooled spindle includes:
Precision-machined body (usually aluminum alloy with cooling fins)
High-speed electric motor (3-phase induction)

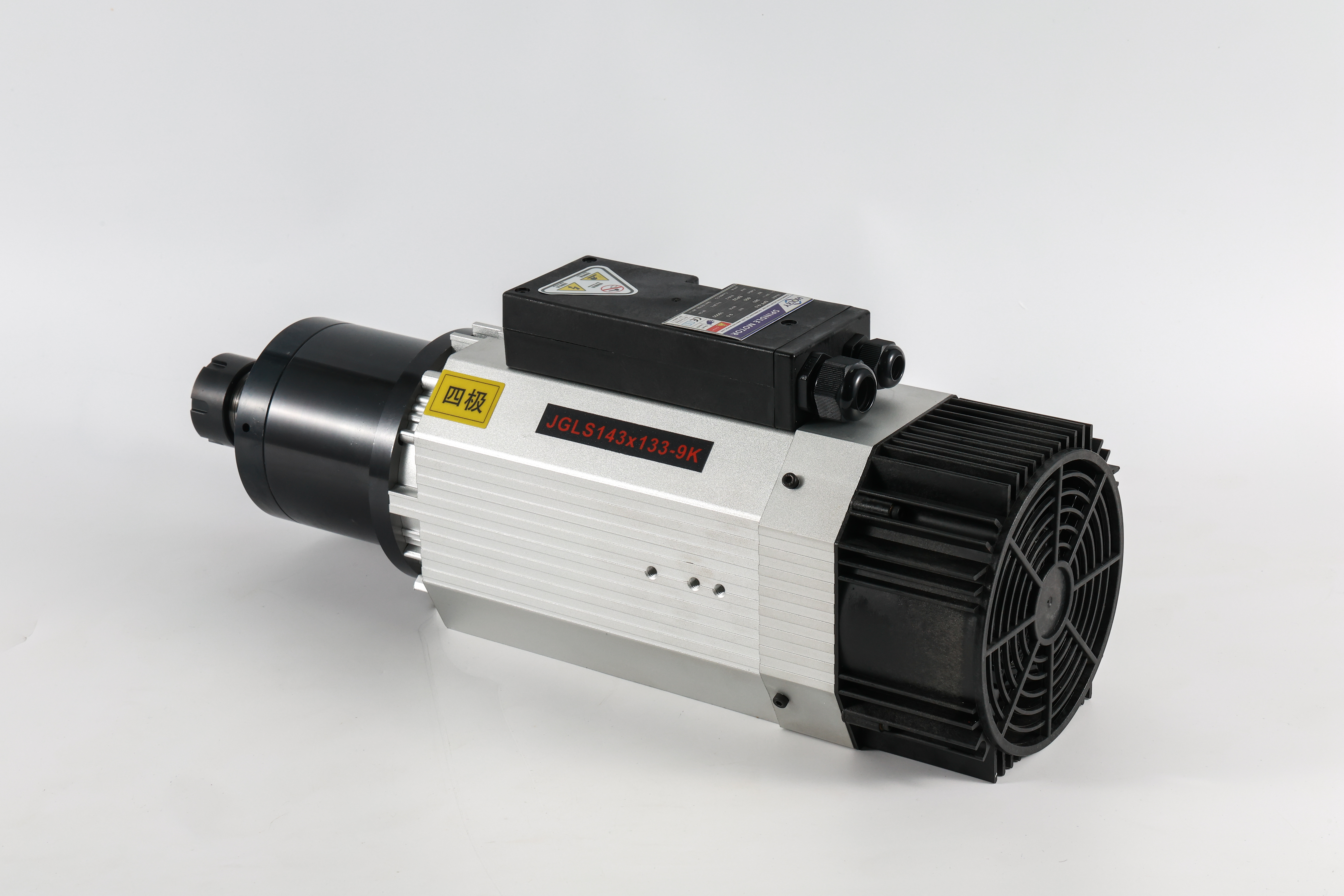

Powerful centrifugal fan at the rear
Labyrinth seals to protect bearings from dust
High-quality angular contact bearings (often NSK or equivalent)
Tool holder interface (ISO30, HSK, or ER collet)
Consider these factors:
Machine rigidity and Z-axis strength
VFD capacity (must handle at least 9-11 kW)
Power supply (380V 3-phase preferred)
Expected duty cycle and materials
ATC vs manual tool change
Safety First: Wiring high-power 3-phase equipment is dangerous. Always consult a qualified electrician. Disconnect power before working. Use proper PPE and follow local electrical codes.
9KW-rated VFD (Vector control recommended)
Shielded 4-core power cable (minimum 4-6 mm² per phase)
Control cables for VFD inputs
Proper grounding
Circuit breaker sized for the spindle (typically 32-40A for 380V)
Most 9KW spindles have a 4-pin aviation connector or terminal box:
Pin 1, 2, 3 — U, V, W (phase connections – order arbitrary)
Pin 4 / Ground — Earth ground (very important for safety and noise reduction)
Connect 380V 3-phase supply to R, S, T terminals. Include a properly rated breaker and contactor.
U → Spindle Pin 1
V → Spindle Pin 2
W → Spindle Pin 3
Ground → Spindle ground + VFD ground
Use multi-core shielded cable for Start/Stop, Speed signal (0-10V or PWM), Fault feedback.
Typical settings for a 9KW spindle (adjust according to your exact VFD model and motor nameplate):
Motor rated power: 9.0 kW
Motor rated voltage: 380V
Motor rated current: Check nameplate (usually 18-22A)
Motor rated frequency: 300 Hz (for 18,000 RPM)
Motor poles: 2 or 4 (usually 2 for high-speed spindles)
Control mode: Vector (SVC or VC)
Max frequency: 400 Hz
Acceleration/Deceleration time: 5-10 seconds (adjust for smoothness)
If the spindle runs backwards, swap any two phase wires (U/V/W).
Use 0-10V analog output from your controller for variable speed.
Enable braking resistor for faster stopping on larger spindles.
Using undersized cable (causes voltage drop and overheating)
Poor grounding (leads to EMI, VFD faults, or safety issues)
Forgetting to shield the cable properly
Incorrect VFD parameters (overheating or loss of torque)
Running without proper phase protection
Ensure the mount is extremely rigid and square.
Leave adequate clearance behind the fan for airflow (minimum 100-150mm).
Balance all tools and use proper collet tightening torque.
Align the spindle axis perfectly with the machine.
For most professional CNC routers working with wood, composites, and non-ferrous metals, yes. It delivers impressive power without the complexity of water cooling. Pair it with a quality VFD, rigid machine, and good dust extraction, and it will serve reliably for years.
