Nkọwa ngwaahịa

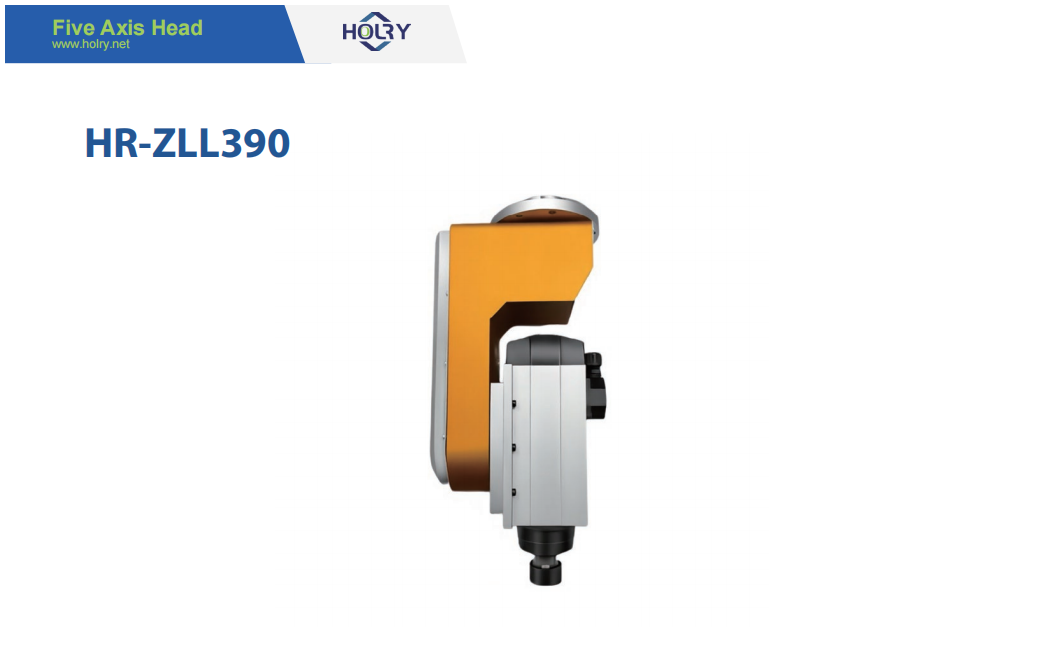

The HOLRY HR-ZLL390 bụ nnukwu arụmọrụ, etiti CNC 5-axis egwe ọka isi mebere iji mechie ọdịiche dị n'etiti ike na ike. N'igosi usoro A/C Dual-Axis siri ike (Double Swing) , HR-ZLL390 bụ nke kachasị maka nhazi njikọ njikọ 5-axis nke geometries dị mgbagwoju anya. Ọ bụ nhọrọ izizi maka ndị na-emepụta ihe na-achọ nguzozi nke imecha ọsọ dị elu yana mbelata ọrụ dị arọ na mbara igwe, ahụike na ụlọ ọrụ ebu dị elu.
Nzaghachi kachasị mma: Ezubere ZLL390 ya na ihe nrụgide siri ike nke na-ebelata mkpọtụ ndakọrịta, na-eme ka ọ pụta ìhè n'elu enyo ọbụlagodi n'oge ntụgharị axis 5 ngwa ngwa.
Oke Torque & Ibu Ibu: Dị ka nkwalite atụmatụ na HR-ZLL300, ihe atụ 390 na-eme ka ndị na-ebelata gia na nkwado buru ibu, na-enye ohere maka ọnụego mwepụ ihe dị elu na dayameta ngwá ọrụ buru ibu.
Nkwughachi nke Sub-Micron: Ejiri ya na ihe ngbanwe zuru oke zuru oke, ọ na-enweta ezi nguzozi nke $le 0.005mm$ , na-ezute nnabata siri ike achọrọ maka agụba turbine na ntinye ahụike.
Njikwa okpomọkụ dị elu: Igwe mmiri na-eme ka mmiri dị jụụ na-agba ọsọ na-aga site na spindle na axis motors iji gbochie mgbasawanye ọkụ, na-ejigide TCP (Tool Center Point) nkwụsi ike n'oge usoro mmepụta 24/7.
Nkwụnye-na-Play Mgbakwunye: N'ụzọ zuru ezu dakọtara na ụlọ ọrụ-ọkọlọtọ CNC njikwa, gụnyere Siemens 840D, Fanuc 31i, na Heidenhain TNC 640 , na-enyere enweghị nkebi retrofitting maka gantry na akwa-ụdị igwe.
| Akụkụ Mba. | HR-ZLL390 | |
| Ihe onwunwe | Aluminom nkedo | |
| Nkeji | A-axis | C-axis |
| Servo moto | 80SE100-57530 | 80SE100-57530 |
| Igbe igbe | Harmonic | Harmonic |
| Oke | 1:120 | 1:120 |
| Torque nwere oke (Nm) | 67 | 67 |
| Oke. Torque ozugbo (Nm) | 167 | 167 |
| Axis kacha ntụgharị akụkụ | ± 110 | ± 360 |
| Ndozi Axis | 1 Arcmin | 1 Arcmin |
| Ibu(KG) | 12 |
|
| Isi aro pendulum ogologo | ≤200MM | |
| Oke ike spindle | 1.5-6 kW | |
Ngwa nke ikuku: Nrụpụta nkenke nke ihe mgbochi obere na-ọkara, blisks na braket arụrụ arụ.
Nrụpụta ngwaọrụ ahụike: Mmepụta ngwa ngwa dị elu nke ihe mgbakwunye orthopedic dị mgbagwoju anya na ngwa ịwa ahụ pụrụ iche.
Injinia ụgbọ ala: Akụkụ sistemu mmanụ gbagwojuru anya, ụdị injin, na ebu ọkụ.
Nkenke na-anwụ anwụ & ebu: Multi-axis miri-ọghe-egwe ọka maka injection ebu na-achọ elu-ọsọ imecha.
HR -ZLL390 na-anọchite anya 'Sweet Spot' maka injinịa nkenke. Ọ na-enye nkwalite mbelata ike nke isi buru ibu na-enweghị oke dị arọ nke na-ebelata nzaghachi siri ike. Site na ijikọ ZLL390 n'ime ngwa igwe gị, ị na-ewepụ njedebe nke ntọala 3-axis, na-ebelata oge ntọlite nke ukwuu na inye ohere maka imepụta akụkụ nwere njirimara ' undercut ' n'otu ọrụ.
