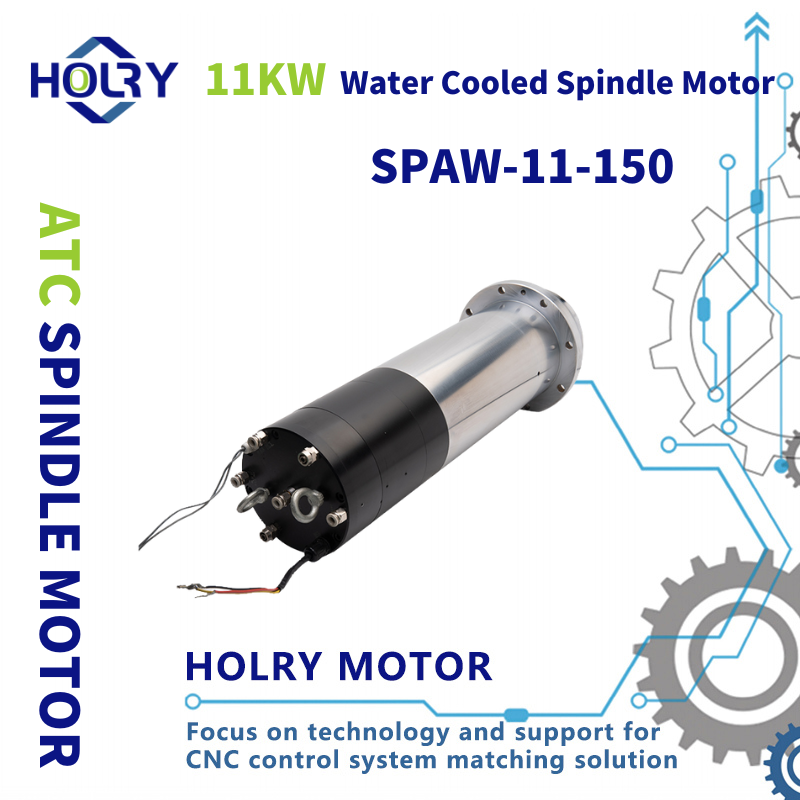

I-High Speed ​​Water-cooled ATC 11kw Spindle Motor ISO40 CNC Spindle ye-Cnc Router

I-11KW CNC Water Cooling ATC spindle motor ithengiswa ngentengo eshibhile, isivinini esingu-15000 rpm, i-750Hz freguency, 3 isigaba 220V ACoperating voltage, ISO40 Tool Holder ehlinzekwa ngumkhiqizi waseChina u-HOLRY. Thenga ngokuqondile ngentengo ephansi kanye nekhwalithi ephezulu.

Isici se-SPAW-11 ATC Spindle

• I-11kw Spindle Motor enohlelo lokupholisa amanzi kanye nesibambi samathuluzi se-ISO40/BT40 siqinisekisa ukusebenza kahle.

• Ukusabela okusheshayo, umthamo oqinile wokugcwala, umsindo ophansi, nokunemba okuphezulu komshini.

• Amabheringi e-ceramic asezingeni eliphakeme, aphumayo aphuma ngaphansi kuka-0.01mm, abhorekile angaphansi kuka-0.005mm.

• Amabhola e-ceramic ebanga le-P4 asetshenziswa njengama-spindle bearings, athuthukisa impilo yesevisi ngaphansi koguquko olunesivinini esikhulu.

• Igcotshwe ngamafutha, amelana nezinga lokushisa elingu-200 degrees.

• Ukuvala okuqinile kanye nedizayini yokuvikela uthuli enezendlalelo ezimbili.

Isicelo

Lolu chungechunge lwezinjini zokuphotha zikagesi ezipholiswe ngamanzi ikakhulukazi zihambisana nokushayela okuguquguqukayo noma imishini yokuqopha, kanye nemishini yomzila we-CNC, futhi asetshenziselwa ukuphrofayilila okunesivinini esikhulu, ukubhola, ukusika, ukuqopha nokugaywa kokhuni, insimbi, amapulasitiki, igwebu, irabha, nezinye izinto.

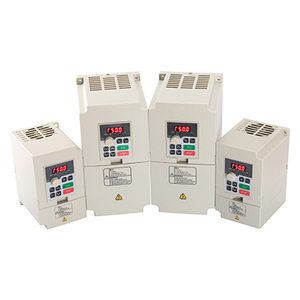

Qaphela: I-spindle motor kanye ne-VFD kuzofanelana. Ukucaciswa kanye nezilungiselelo zepharamitha ze-VFD zizofanelana nemingcele ye-spindle motor. Uma kungenjalo, izoshisa i-spindle motor uma izilungiselelo zingalungile.

Ukucaciswa

INDLELA	I-SPAW-11-150
AMANDLA	11KW
I-VOLTAGE	220V/380V
CURRENT	22A
POLE	6
IFREQUENCY	400Hz/750Hz
ISIVIVINYO	8000RPM/15000RPM
I-TOQUE	13.2/16Nm
Inzwa	I-PNP
ISIBAmbi LWETHULUSI	ISO30/BT30
ISISINDO	55KG

Imininingwane

Amacebiso: Iyini i-Spindle Motor engu-11kw?

I-11kw Spindle Motor ibizwa nangokuthi yi-high-speed motor, ibhekisela ekuguqukeni kwemoto engaphezu kuka-10000 RPM AC. Inezinzuzo zejubane elisheshayo, usayizi omncane, ongasindi, ukusetshenziswa kwempahla ephansi, umsindo ophansi, nokudlidliza okuphansi, okusetshenziselwa ikakhulukazi ukhuni, i-aluminium, itshe, i-hardware, ingilazi, i-PVC, nezinye izimboni. Ngenxa yokusetshenziswa kwayo okubanzi nomsebenzi wokucophelela, isivinini esisheshayo, kanye nekhwalithi yokucubungula enhle kakhulu, okwenza enye injini evamile ingakwazi ukuhlangabezana nezidingo zobuchwepheshe zemoto yokuphotha. I-spindle motor idlala indima ebalulekile enqubweni yokukhiqiza yezimboni, ngakho-ke idume kakhulu emhlabeni wonke.

Amathiphu Okuphepha Okusebenzisa i-HOLRY CNC 11kw Spindle Motor

1. Injini kagesi yokuphotha kanye ne-VFD kuzofanelana. Ukucaciswa kanye nezilungiselelo zepharamitha ze-VFD zizofanelana nemingcele ye-spindle motor, futhi izoshisa injini yokuphotha uma izilungiselelo zingalungile.

2. Ngaphambi kokusebenzisa injini yokupholisa epholiswe ngamanzi, izoqinisekisa ukuthi uhlelo lomjikelezo wokupholisa lusebenza ngendlela evamile futhi ukusebenza ngaphansi kwezimo ezingezizo zokupholisa akuvunyelwe. Umthamo wamanzi okupholisa ubalwa ngokwelitha eli-1/ngomzuzu, ukugeleza okuncane kwamanzi okupholisa akukho ngaphansi kwamalitha ama-5/ngomzuzu, ipayipi lamanzi okupholisa kanye nombhobho kufanele uxhumeke ngendlela ethembekile futhi akukho ukuvuza.

3. Uketshezi olupholisayo kufanele luhlanzeke futhi lungabi nagrisi futhi izinga lokushisa libe phakathi kuka-5-30℃. Indawo yokupholisa kufanele ipholise ngamandla lapho izinga lokushisa lendawo lingaphezu kuka-30 ℃. I-lathe enembayo idinga uketshezi olupholile olunokushisa okungashintshi okungu-20 +/-2℃.

4. Ngesikhathi sokugcinwa kanye nokuthuthwa kwe-spindle motor, isimo samafutha esivinini esikhulu ngaphakathi kwe-bearing sizoshintsha. Umsebenzisi uzoyigijima ngesivinini esiphansi kuqala ngokuqala ngesivinini esiphansi kakhulu senjini yokuphotha imizuzu engama-30 bese kuba imizuzu engama-20 kuyo yonke imijikelezo engu-3000. Uma kungenjalo kuzoba nomsindo ongajwayelekile, umsindo, ukushisa nezinye izinto, okuzothinta impilo yokuthwala uma i-spindle motor iqalwa ngqo ngesivinini esikhulu. Ngesikhathi sokugcina isikhathi eside, injini yokuphotha izosebenza (ngesivinini esiphansi) imizuzu eyi-15-30 kanye ngesonto okungenani.

5. I-collet, i-nati kanye nembobo ye-taper yangaphakathi kufanele igezwe ihlanzeke lapho kufakwa ama-blade enjini yokuphotha ukuze kugwenywe noma yimuphi umthelela ekunembeni. Isibambo se-blade kufanele sifakwe ku-collet ngaphezu kuka-15mm.

6. Ngokwenza imishini yansuku zonke, i-spindle motor izofudunyezwa, igijime imizuzu engu-15-20 lapho isivinini somshini sifinyelelwa bese senza imishini enembile. Kungcono ukumisa injini yokuphotha amahora amabili nsuku zonke ukuze ibuyise ukukhathala kwayo komshini futhi yelule isikhathi sayo sokuphila.

7. Akukho ukushaya isembozo sokugcina senjini yokuphotha. Akukho ukushaya i-collet nekhanda le-blade lapho ususa ama-blade. Akukho okushaqisayo noma ukushayisana ngesikhathi sokuthutha, ukugcinwa kanye nokusebenzisa, ikakhulukazi ukuphela kwenjini yokuphotha.

8. Injini yokuphotha izohamba ngendlela ebekiwe.

9. Injini yokuphotha izofakwa futhi ilungiswe ngokuhambisana nemidwebo nemiyalo efanele.

10. Izinga lokushisa kufanele libe phakathi kuka-22-25℃ uma kusetshenziswa umshini wokupholisa amanzi.

11. Injini yokuphotha ithatha isikhiya somoya futhi umthombo wegesi akufanele usetshenziswe kuze kube yilapho usudlulile isihlukanisi samanzi samafutha kanye nesihlungi esomile. Ukucindezela komoya kungu-0.2-0.25Mpa futhi ukunemba kokuhlunga kungu-5μm, ngaphandle kwalokho kuzodala umonakalo ekuthwaleni.
